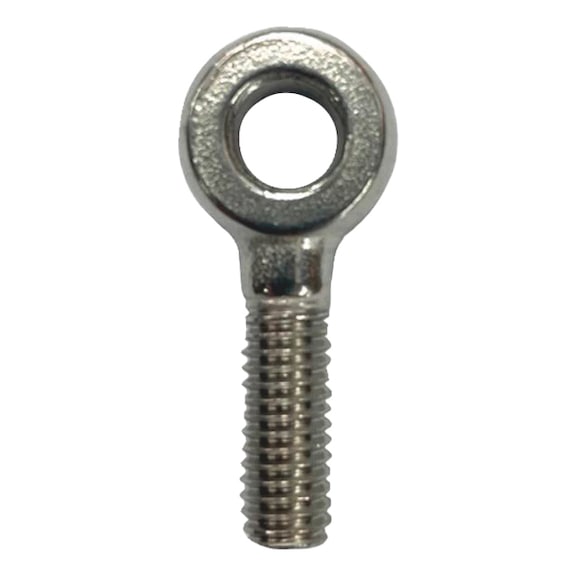

A4 Stainless Steel Eye Bolt
BLT-EYE-MINI-A4-M6X43MM
Art.-no. 5110006043
EAN 4099618575297
Individual price display after login
Exclusively for registered customers
Register now and access more than 20,000 products
Eye Bolts are specifically designed to be screwed into internal threaded holes such as Blinded Rivet nuts, or Nutserts creating a secure fix
- Marine grade suitable
- Highly secure fastening
- Aesthetically pleasing finish
NoticeThese Products have not been designed for slings or load bearing equipment
Product information
Datasheets(X)
Application areaWire Balustrading, Landscaping and Gardening
 | |

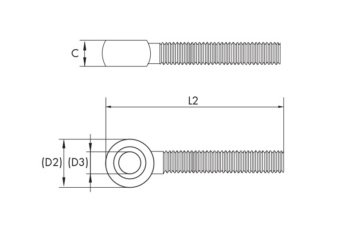

Thread type x nominal diameter (d1) | M6 |
Length (l2) | 43 mm |
External diameter of ring (d2) | 12.7 mm |
Internal diameter of ring (d3) | 6 mm |
Eye thickness (s1) | 6.7 mm |
Nominal diameter | 6 mm |
Thread length (metric thread) | 26 mm |
Material | Stainless steel A4 |
Surface | Plain |
Thread type | Metric thread |
